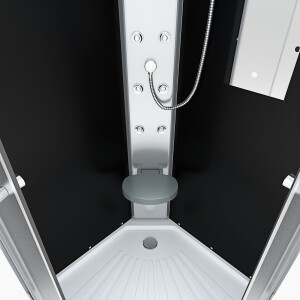

AcquaVapore d10-13m0-ec shower temple / shower enclosure / complete enclosure
This beautiful shower temple is completely made of 5mm safety glass (also the back walls) and high quality aluminum profiles. We use only high quality materials in our shower cabins.
Especially convenient is that you can build the shower similar to a cabinet and then simply push it into the corner. If you ever move then you can also assemble this shower like a cabinet and take it with you.
Size, color and general features
- Black
- 90x90 cm (minimum height *1 see sketch S1)
- Height of the shower tray about 15cm, standing height in the shower about 194cm
- integrated folding seat (up to 110kg)
- Mirror
- Glass shelf with storage for shampoo or similar
- WITH "EasyClean sealing" of the glass panes
Water functions:
- Single lever faucet with multiple switch, basic body made of brass / high quality chrome-plated
- extra large rain shower
- Hand shower with three jet types
- 6 back massage jets
- Drain set with flexible hose and odor trap
The large rain shower
Under the large rain shower with a diameter of about 30cm you can experience a completely new showering pleasure.
The hand shower
In addition to the rain shower, this shower has a beautiful chrome-plated hand shower with a shapely connection hose. The holder in noble design is located within easy reach next to the panel. You have the option to set three different jet / spray types on the hand shower.
The back massage
In the panel of the shower are already 6 back massage nozzles integrated, these nozzles are adjustable for the upper and lower back.
The connections
All connections (water, drain and electricity) are flexible. Thus, the shower often fits easily on existing connections. All hoses are also supplied in a reinforced version. The water hoses to the shower are designed for a maximum pressure of 4 bar. The water hoses to the individual showers are in double-walled design with textile insert and can also be loaded far beyond the normal water pressure.
- Water connections for cold/hot water: 1/2" 2-4 bar water pressure
- suitable for the use of an instantaneous water heater (min. 18kw heating capacity recommended)
- flexible waste water connection (ht 40mm), integrated siphon with odor trap
- Connection dimensions (see sketch s2): *1 hot and *2 cold water, also possible opposite, *3 area for drain pipes, *4 free area around drain siphon
The shower tray
The shower tray is made of white reinforced high-quality sanitary acrylic in shell design. It is especially suitable for children. The shower tray has a high wall attached to the outermost edge, which prevents water from leaking. Under the shower tray (loadable up to 130kg, reinforcement possible) there is a steel frame with adjustable feet. These are individually adjusted in height for stable construction of the shower. Of course, this shower includes a matching drain set.
Our quality control
Of course, the showers we sell have all the certificates necessary to sell the showers in Europe. But another important point is our own quality control on site, which permanently monitors and documents the production directly in the factory hall. We do not just buy our showers from any Asian manufacturer! no! We have the showers manufactured according to our ideas and our specifications under constant control in selected and personally inspected by us factories.
It depends on the used material!
Particularly important with sanitary articles are of course the materials used. We do not make any compromises. Only high-quality toughened safety glass is used for this shower. Under normal circumstances, you can hardly break it. The frame construction is completely made of aluminum. The shower tray is made of thick sanitary acrylic which was additionally reinforced with fiberglass. The shower tray stands on a very stable steel frame with individually adjustable feet.
The construction of the shower
This shower temple can be easily built by two people. Of course, you can also hire a professional company to assemble it. A somewhat talented do-it-yourselfer with a little help is sure to get this shower built. Who can build a large cabinet together, which also gets the construction of this shower. Very important is that you should build this shower necessarily to two, the thick glass panels are really heavy and you always need someone who holds. All parts of the shower are tested before delivery to us by the manufacturer, after arrival in our warehouse we also make random checks. No inferior or non-functional parts are processed. For quick assembly and smooth operation of the shower is equipped with all necessary seals. The use of silicone is largely a thing of the past.
Delivery time of the goods to you
We deliver the shower safely packed with a reputable shipping company to the curb or property line to you to you. The delivery time usually takes only 3-5 working days. This is calculated from the day of shipment according to the availability indicated in the offer and provided that we have received full payment for the goods. We ship in the same order in which we receive the payment.
